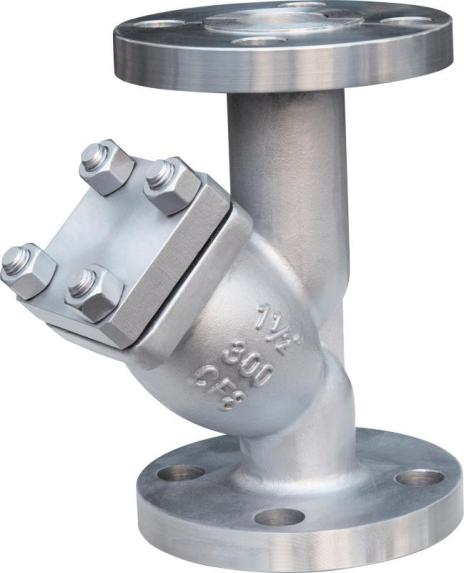

Y type Strainer is an indispensable filter device in the pipeline system of conveying media made by stainless steel. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed level valve or other equipment to remove impurities in the media to protect the normal use of valves and equipment.  The characteristics include advanced structure, low resistance, convenient blowdown and so on.  Applicable media can be water, oil, gas. Generally, the water network is 18 to 30 mesh, the ventilation network is 10 to 100 mesh, and the oil network is 100 to 480 mesh. Main parts and materials Name/Material WCB CF8 CF3 CF8M CF3M Body WCB CF8 CF3 CF8M CF3M Screen SS304 SS304 SS304L SS316L SS316L Bolt/Nut B7/2H B8/8 B8/8 B8M/8M B8M/8M Gasket PTFE、NBR、Metal Wound Graphite Filter Fineness 10Mesh ~ 400Mesh Flange Standard JIS、ASME、DIN、BS、GB Pressure 0.6Mpa ~ […]

Y-type Strainer is an indispensable filter device in the pipeline system of conveying media. It is installed at the inlet end of pressure reducing valve, pressure relief valve, fixed level valve or other equipment to remove impurities in the media to protect the normal use of valves and equipment. The characteristics include advanced structure, low […]
