Summarize Bag filter is divided into top type (D type) and side type (C type) two types, there are single bag, multi-bag and double type (S type) a variety of model specifications, can be configured according to the medium requirements of different structures and materials of filter bags. Top-in (D-type) 1: multi-set ring head bolt […]

Read More
Double switch strainer

Double switch strainer (SSL) Double strainer is also known as Double switch strainer, using two three-way ball valves or butterfly valve, the two single-cylinder filter assembly on a frame, cleaning the filter does not have to stop, to ensure its continuous work, is the first choice for the filter production line, the filter element of the filter, […]

Read More
Stainless steel Y Type Strainer

Y type Strainer is an indispensable filter device in the pipeline system of conveying media made by stainless steel. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed level valve or other equipment to remove impurities in the media to protect the normal use of valves and equipment.  The characteristics include advanced structure, low resistance, convenient blowdown and so on.  Applicable media can be water, oil, gas. Generally, the water network is 18 to 30 mesh, the ventilation network is 10 to 100 mesh, and the oil network is 100 to 480 mesh. Main parts and materials Name/Material WCB CF8 CF3 CF8M CF3M Body WCB CF8 CF3 CF8M CF3M Screen SS304 SS304 SS304L SS316L SS316L Bolt/Nut B7/2H B8/8 B8/8 B8M/8M B8M/8M Gasket PTFE、NBR、Metal Wound Graphite Filter Fineness 10Mesh ~ 400Mesh Flange Standard JIS、ASME、DIN、BS、GB Pressure 0.6Mpa ~ […]

Read More
Y type strainer

Y-type Strainer is an indispensable filter device in the pipeline system of conveying media. It is installed at the inlet end of pressure reducing valve, pressure relief valve, fixed level valve or other equipment to remove impurities in the media to protect the normal use of valves and equipment. The characteristics include advanced structure, low […]

Read More

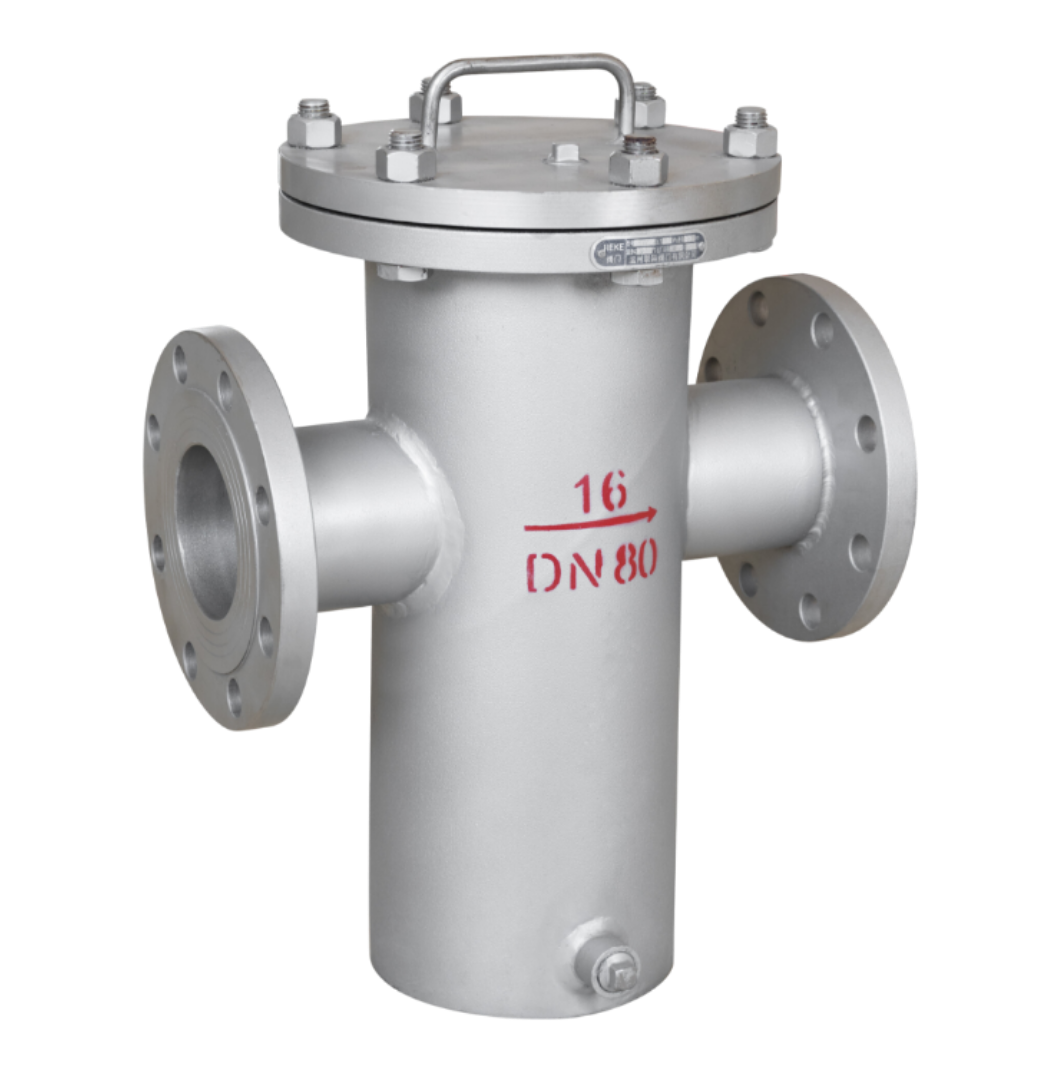

Basket strainer

The basket strainer is used for oil or other liquid pipelines to strainer the debris in the pipeline, and the strainer hole area is 2-3 times larger than the diameter pipe area. Far more than Y type, T type strainer area. The strainer structure is different from other strainer, because the shape is like a […]

Read More
T strainer

T-type strainer look like the letter “T” shape, so we call them T-type strainer. T-type strainer is a small device to remove a small amount of solid particles in the liquid, which can protect the normal work of the equipment, when the fluid enters the strainer cartridge with a certain specification strainer screen, the impurities […]

Read More
Load More
FAQ
What are types of strainers?
+
Strainers include Y-strainers (compact for minimal debris), basket strainers (larger debris), T-strainers (for smaller systems). Basket strainers, bag filters, and precision filters offer better filtration but are more expensive.
For more advantages>>>
What is the purpose to use pipe strainer or valve strainer?
+
The purpose of a pipe strainer is to remove solid particles from liquids or gases, protecting downstream equipment, ensuring fluid purity, improving efficiency, and reducing maintenance needs.
