What is the Difference Between Simplex and Duplex Basket Strainers?

In industrial pipelines, filtering debris and ensuring smooth flow are crucial for protecting sensitive equipment. Additionally, it also contributes to maximizing operational efficiency.

Basket strainers play a vital role in this. They primarily capture unwanted particles such as dirt, sediment, and other contaminants to prevent damage or clogging in the system.

Choosing the right type of filter is essential to maintaining continuous flow and reducing downtime. Below, we explore the distinct differences between simplex and duplex basket strainers. This is to help you select the right option for your pipeline needs. To do so, we’ll highlight the benefits of duplex filtration systems.

Simplex vs. Duplex Basket Strainers: Key Differences

When deciding between a simplex and duplex strainer, it’s essential to understand the following:

• Operational needs of your system
• Frequency of maintenance
• Budget constraints

Here’s a closer look at each type and how they operate differently:

Design and Mechanism

• Simplex Basket Strainer:

A simplex basket strainer is the simplest of the two types. It only consists of a single chamber that holds one basket. This basket is responsible for capturing debris and preventing it from flowing downstream. Since it has only one chamber, the entire system must be shut down temporarily whenever the basket needs cleaning or maintenance.¹

• Duplex Basket Strainer:

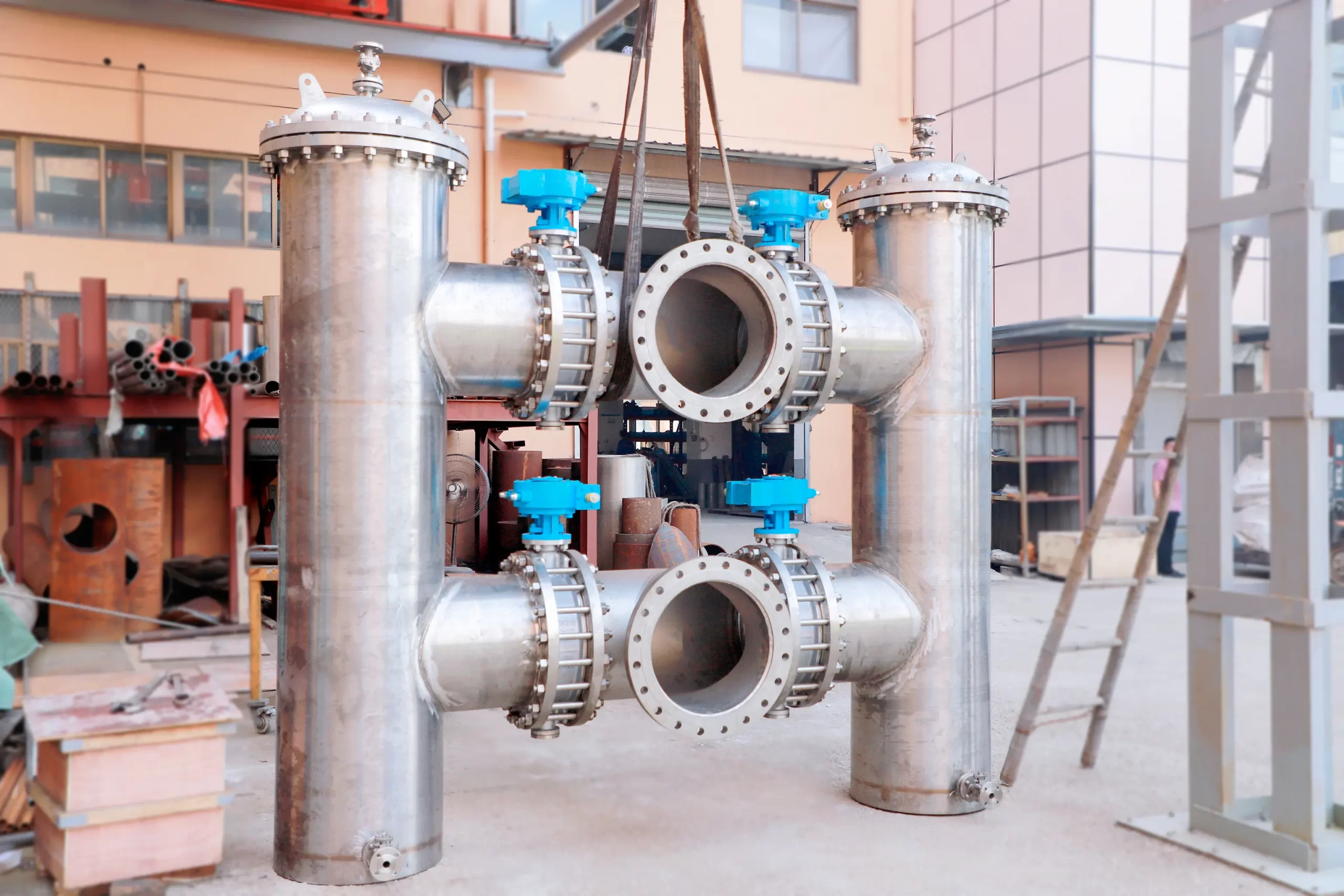

A duplex strainer is often referred to as a dual basket strainer or strainer duplex. It features a two-chamber design with two separate baskets. The duplex filter allows one chamber to be cleaned while the other continues filtering. The design ensures duplex filtration and a continuous flow of fluid.²

The duplex strainer also comes with a switching mechanism. It lets operators seamlessly switch from one basket to the other without stopping the entire system. This design is ideal for continuous flow processes where any disruption could lead to costly downtime.

Operational Continuity and Efficiency

• Simplex strainer efficiency:

Simplex strainers are effective for industries where periodic shutdowns could occur. They are simpler in design, have fewer moving parts, and are easy to install and maintain. However, they lack the continuous filtration capability of a duplex filter. Also, they require complete system shutdowns for cleaning and maintenance.¹

• Duplex strainer efficiency:

Duplex strainers are essential in high-stakes applications. Here, uninterrupted flow is critical. By offering duplex filtration, they allow one chamber to operate while the other is cleaned. Moreover, this strainer type minimizes the need for shutdowns and maintaining operational continuity. This dual-chamber system is efficient in applications like chemical processing, oil and gas. In these industries downtime can be costly and operational efficiency is paramount.²

Application Suitability

• Applications for simplex basket strainers:

Simplex strainers are typically used in non-critical systems. In these fields, the flow can be stopped temporarily. This may be referred to as batch processing or in smaller operations that don’t run continuously. Simplex basket strainers may be utilized in certain food and beverage production lines, general water filtration, and HVAC systems.

• Applications for duplex basket strainers:

Duplex strainers are better suited for continuous-flow applications. They are typically found in industries where any downtime could have significant cost implications. They are popular in sectors such as oil and gas, power generation, chemical processing, and water treatment.

Maintenance Requirements

• Simplex Strainer Maintenance:

Maintenance for a simplex strainer involves halting operations to remove and clean the basket.

• Duplex Strainer Maintenance:

Maintenance for a duplex strainer is far more flexible. One basket can be cleaned while the other continues to function. This reduces downtime and allows for on-the-fly maintenance. This feature makes duplex strainers particularly advantageous in 24/7 operations. Here, even short interruptions can impact efficiency.

Cost Considerations

• Simplex Strainers:

Simplex strainers are generally more affordable than duplex strainers. This is because of their simpler, single-chamber design. They are cost-effective for applications that don’t require continuous flow. They are ideal for industries where occasional downtime is manageable.¹

• Duplex strainers:

Duplex strainers are more expensive initially due to their dual-chamber design. Their switching mechanism adds to their price, too. However, this added cost is justified. This is because some applications require uninterrupted flow which the mechanism can provide.

Over time, duplex strainers reduce the risk of costly downtimes and potential productivity losses. Duplex filtration systems, despite their higher initial investment, often prove more economical in the long run. This is especially true for industries with critical operations.

Here’s a table that summarizes the key differences between simplex and duplex basket strainers:

Feature	Simplex Basket Strainer	Duplex Basket Strainer
Design	Single chamber with one basket	Dual chamber with two baskets
Flow Continuity	Requires shut down for cleaning or maintenance	Allows continuous flow; can switch between chambers during maintenance
Applications	Suitable for non-critical systems with acceptable downtime	Ideal for continuous-flow applications and critical systems where downtime is costly
Maintenance Process	Full system shutdown needed to access and clean the basket	One chamber can be cleaned while the other remains in operation
Cost	Lower initial cost due to simpler design	Higher initial cost due to dual-chamber and switching mechanism
Installation Complexity	Simple installation with fewer components	Slightly more complex installation due to additional chambers and a switching system
Operational Efficiency	Suitable for intermittent or batch processes	High operational efficiency with uninterrupted flow in continuous operations
Industries	Used in industries like HVAC, water filtration, and general systems	Common in oil and gas, chemical processing, water treatment, and power generation
Advantages	Cost-effective and straightforward for non-critical use	Ensures minimal downtime, continuous filtration, and flexibility in high-stakes applications
Limitations	Limited to systems where flow can be halted for maintenance	Higher initial cost, more complex setup, but ideal for reducing operational disruptions

Choosing the Right Strainer for Your Needs

So, which one should you between a simplex and duplex basket strainer? It all depends on the specific requirements of your pipeline system. Simplex strainers are cost-effective and suitable for non-continuous operations. On the one hand, duplex strainers offer duplex filtration capabilities essential for high-stakes applications. In such industries, downtime is not an option.

Why Choose Lianke Valve Co., Ltd. for Duplex and Simplex Strainers?

Lianke Valve Co., Ltd. provides both types of strainers and custom filtration solutions. All of these are designed to meet the demands of any industrial application. With over four decades of expertise, a dedication to advanced technology, and a focus on client satisfaction, Lianke is your ideal partner. The company is suitable for businesses seeking reliable, cost-effective solutions in pipeline fluid filtration and valve technology.

Reference

1 Differences between Simplex and Duplex Strainers; Factory Direct Pipeline Products; (https://fdpp.com/articles/Simplex-and-Duplex-Strainer-Differences.htm)
2 Duplex Strainers vs. Simplex Strainers: A Comparative Analysis; Sungov; 2023 (https://www.sungov.com/duplex-strainers-vs-simplex-strainers-a-comparative-analysis/)
