A pinch valve is a control valve that utilizes pressurized air to manage fluid flow. Pinch valves are also referred to as squeeze valves or clamp valves. It is a cost-effective option due to its simplicity and low friction, making it resistant to clogging. Pinch valves find applications in on/off and throttling services across various industries, including chemical, food, pharmaceutical, and cement. They are ideal for shutting off or controlling the flow of abrasive, granular, or corrosive media.

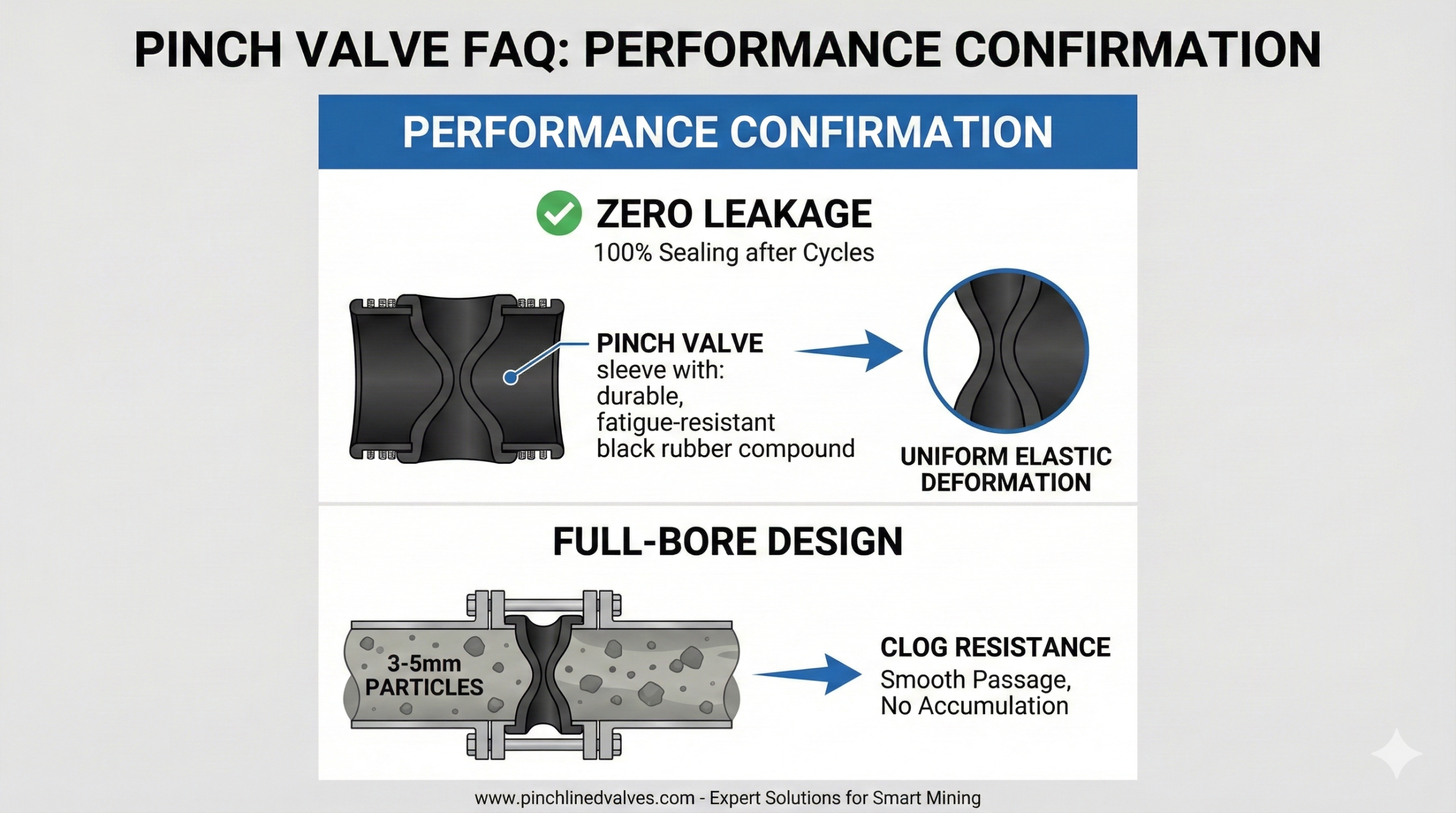

To understand how pinch valve work, it is essential to know that they utilize pressurized air to open or close the valve. The rubber sleeve is fitted into the housing from inlet to outlet and is the only component that contacts the media. The actuator pushes down at the middle of the sleeve to open position close the valve, trapping any media still in the middle and stopping flow entirely. Pinch valves can be operated manually or automatically using compressed air or a solenoid actuator.

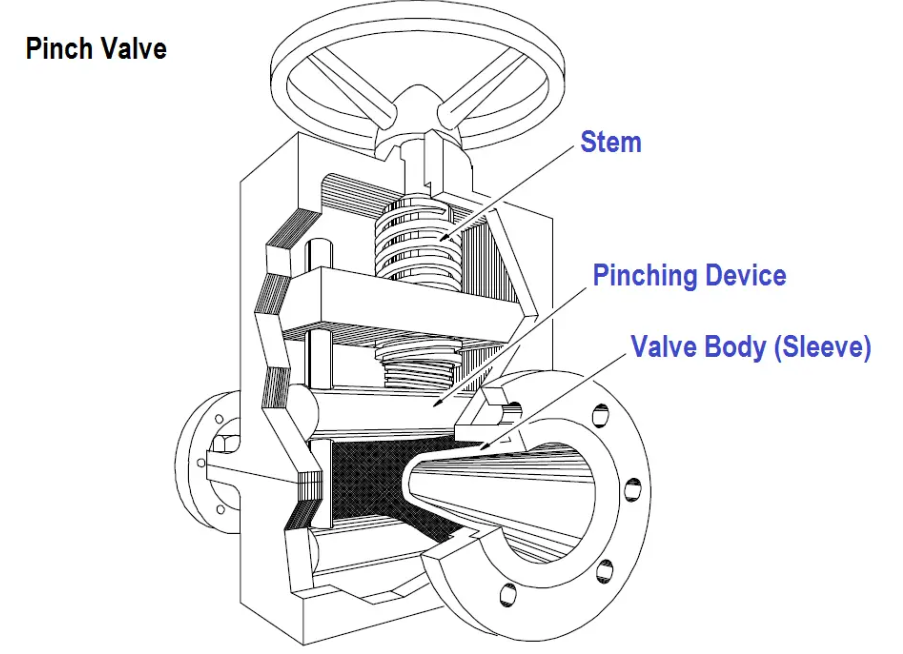

Pinch valves regulate fluid flow using a flexible elastomeric tube or sleeve. The valve body provides support, while actuators—manual, pneumatic, hydraulic, or electric—control the sleeve for precise regulation. End connections ensure seamless integration, and the pinch bar executes the pinching action, making these valves versatile for various industrial uses.
| Component | Description |
|---|---|
| Sleeve | A flexible and resilient component that plays a pivotal role in controlling the flow of fluids. |
| Body | Serves as the protective and structural foundation of the pinch valve. |
| End Connections | Inlet and outlet ports available in various forms such as flanged end connections. |
| Pinch Bar | A crucial component that presses against the rubber sleeve to control flow, demonstrating both mechanical and automatic functionalities. |
| Actuator | The dynamic component responsible for manipulating the sleeve to adjust fluid flow. |
Let us explore various pinch valve types to improve understanding. This is one of the main types of pinch valves you may be considering:
Manual Pinch Valves: Operated by hand, these valves are ideal for applications with infrequent adjustments. They use a hand wheel or lever to compress the sleeve, providing a reliable seal without external power.
Solenoid Pinch Valves: Automated and precise, these valves use a solenoid actuator for quick response, perfect for medical devices and automated systems.

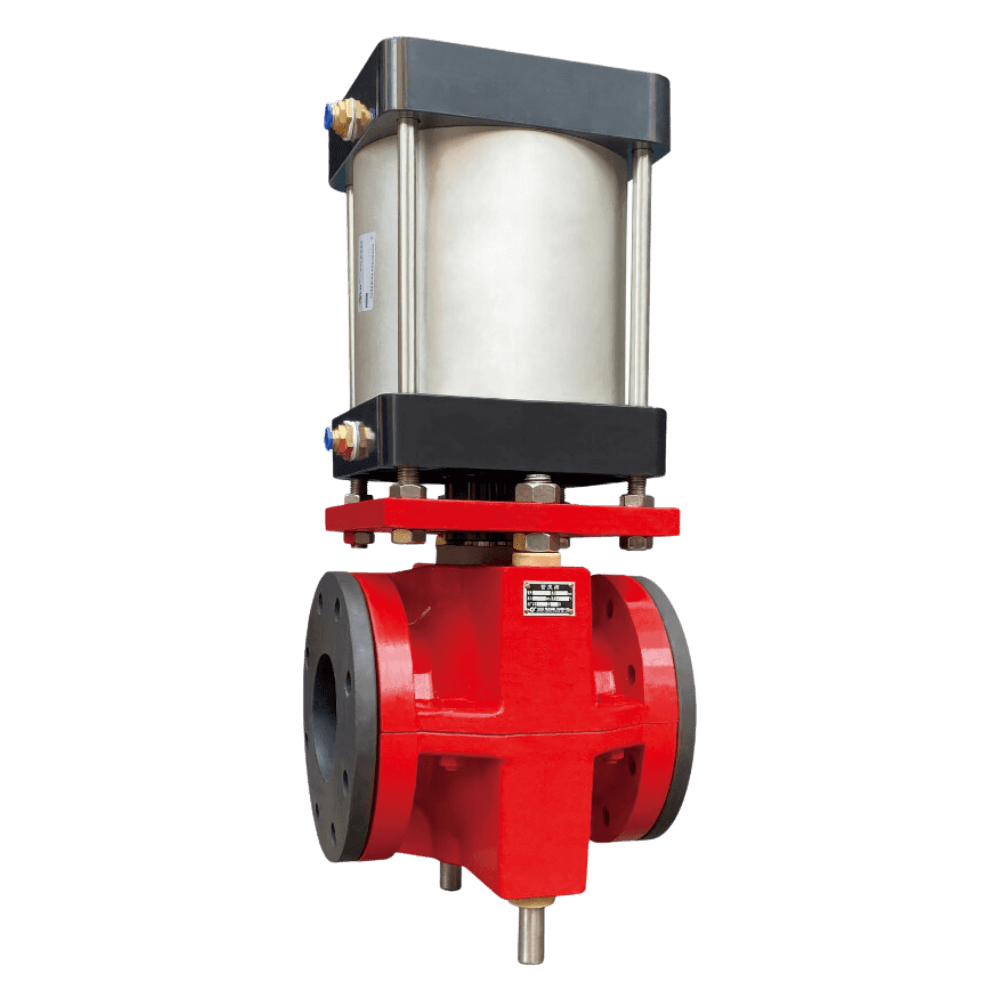

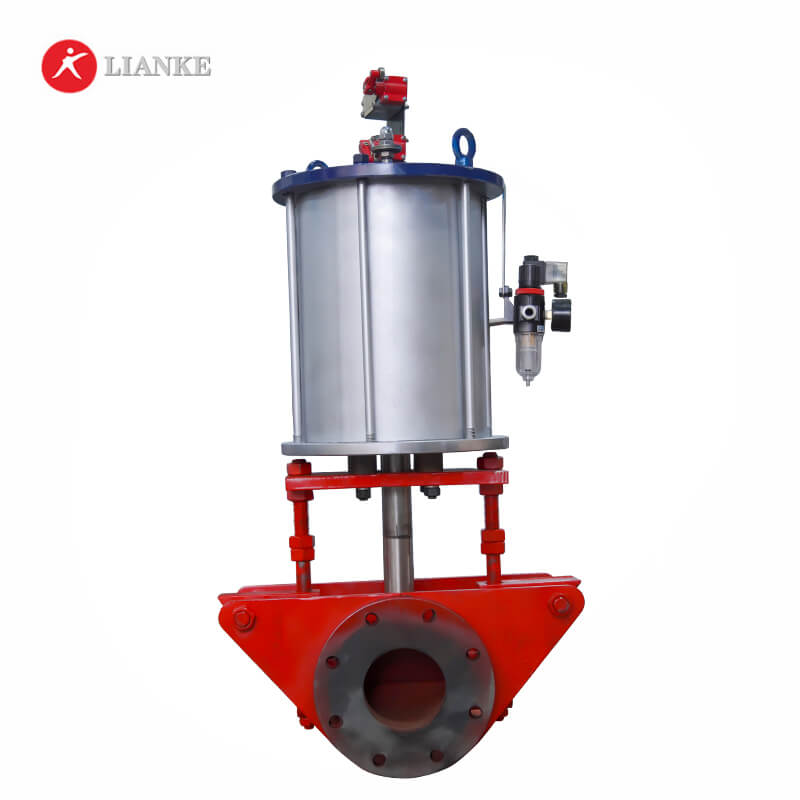

Air Operated Pinch Valves: Utilizes compressed air for frequent use, handling abrasive and corrosive media, ideal for industries like mining and wastewater treatment.

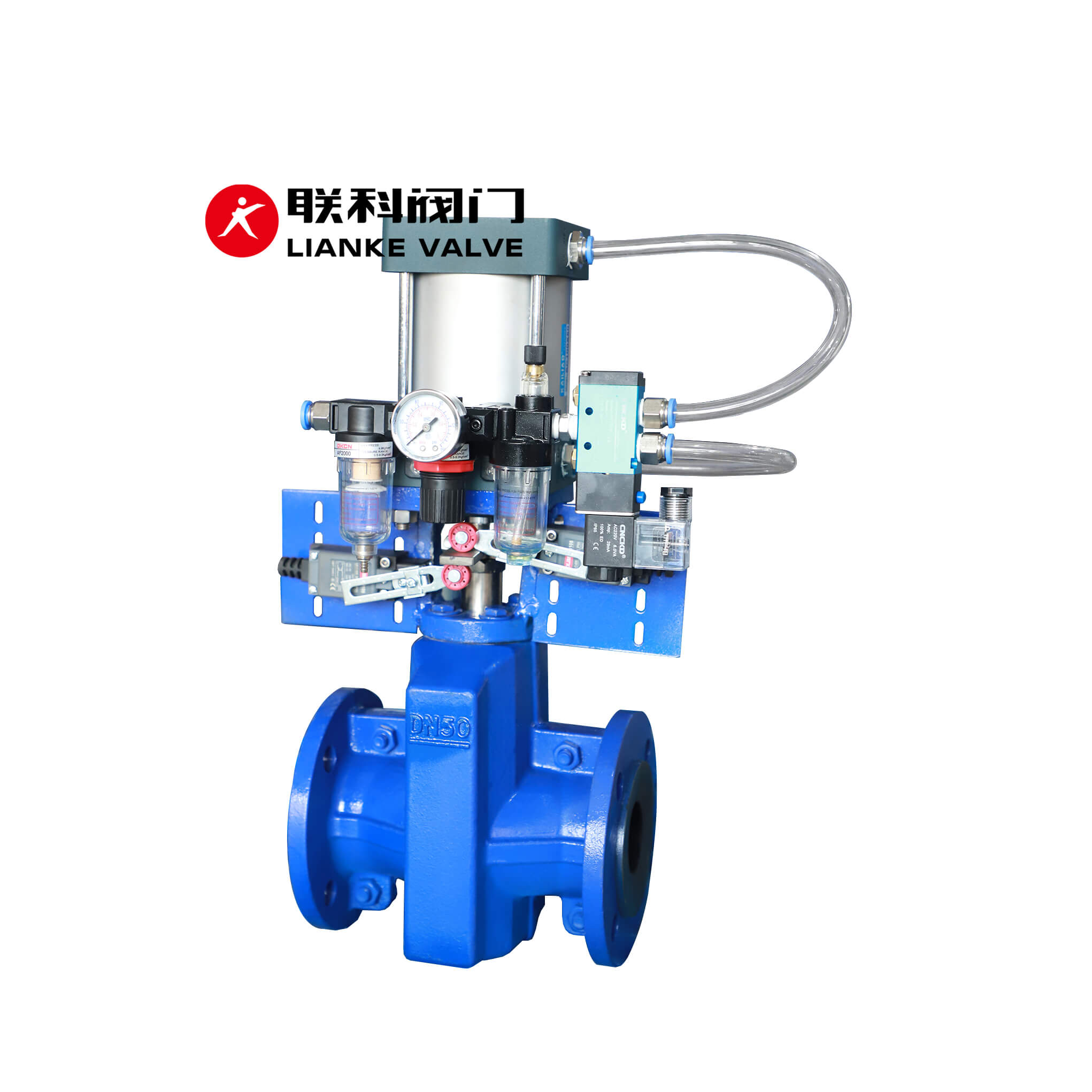

Pneumatic Pinch Valves: Offers rapid flow regulation with compressed air, suitable for food, pharmaceuticals, and pulp industries needing precise control.
Hydraulic Pinch Valves: Uses hydraulic fluid for high force applications, often in mining or thick fluid processes.
Electric Pinch Valves: Employs an electric motor for precise, programmable control, suitable for automated industrial systems.
By understanding the various types of pinch valves available, users can select the most suitable option for their specific application, ensuring efficient and reliable fluid flow control.
Installing a pinch valve is a straightforward process requiring minimal tools and expertise. Ensure compatibility with the existing pipeline, align the flanged or threaded end connections, and securely insert the rubber sleeve from inlet to outlet, tightening the connections to prevent leaks.
Maintenance is equally simple due to the low-maintenance design of pinch valves. Periodically inspect the rubber sleeve, the primary component in contact with the media, for wear or damage, especially in abrasive or corrosive applications, and replace it swiftly to minimize downtime.
To ensure optimal performance and durability, the selection of materials for pinch valves is critical. Here’s a table summarizing the common materials used for the sleeve and body, along with their unique properties:
| Component | Material | Properties and Applications |
|---|---|---|
| Sleeve | Natural Rubber | Highly flexible, abrasion-resistant, suitable for abrasive media. |
| EPDM | Excellent chemical resistance, ideal for corrosive applications. | |
| Silicone | High-temperature tolerance, suitable for high-temperature media. | |
| Body | Stainless Steel | Superior strength, corrosion resistance, suitable for harsh environments. |
| Aluminum | Lightweight, good corrosion resistance, used in less demanding environments. | |
| Plastic | Cost-effective, resistant to a wide range of chemicals, ideal for general applications. |
Advantages: Minimal frictional resistance on mass flow, lightweight and easy to maintain, effective in regulating flow, even in applications with solids, slurries, liquids, and granules.
Disadvantages: Limited control over flow rate, not suitable for high-pressure applications, may require frequent replacement of the sleeve.
Pinch valves are versatile and find applications across a wide range of industries due to their effective fluid flow control capabilities. Here are some specific applications:
Chemical Processing: Ideal for handling corrosive and abrasive chemicals, providing reliable flow control and resistance to harsh substances.
Pharmaceuticals: Used in precise dosing and shut-off applications, ensuring contamination-free processes with their clean and sterile design.
Mining: Effective in managing the flow of slurries and abrasive materials, ensuring durability and minimal maintenance in harsh environments.
Cement Industry: Employed in the control of dry powders and granules, providing efficient material handling and reduced wear and tear.
Energy Efficiency: Low energy use with pressurized air or solenoid actuator.
Waste Reduction: Replaceable rubber sleeve minimizes waste.
Eco-Friendly: Supports sustainable practices and reduces carbon footprint.
Affordable: Lower initial cost than butterfly or ball valves.
Low Maintenance: Only the rubber sleeve needs occasional replacement.
Operational Savings: Efficient, durable, and minimal downtime for cost-effective fluid control.
Pinch valves are a simple yet effective solution for controlling fluid flow in various industries. Understanding the different types of pinch valves and their applications can help users choose the right type of pinch valve for their needs. By considering the advantages and disadvantages of pinch valves, users can make an informed decision and ensure effective control over their process flow.
