Imagine a pharmaceutical plant mixing delicate ingredients or a water treatment system precisely regulating flow. In these scenarios, accuracy and contamination-free performance are crucial.
Enter the diaphragm control valve—a highly reliable valve designed to manage flow rates with precision while maintaining a clean, leak-free operation.
Unlike other valves, diaphragm control valves use a flexible membrane (the diaphragm) to control fluid flow by responding to pressure changes. This unique design makes them a top choice for industries requiring sterility, durability, and precise flow control.
But how exactly do they work? Let’s take a closer look at their operation, components, and types to see why they’re an essential part of many modern systems.
A diaphragm control valve is a specialized valve designed to regulate, start, or stop the flow of liquids, gases, and slurries.
It uses a flexible diaphragm as its closing element to isolate or control fluid flow through the valve body.
Because the diaphragm physically separates the flow medium from other valve components, it offers excellent leak prevention and contamination-free operation—perfect for industries like pharmaceuticals, food processing, and water treatment.
The primary function of a diaphragm control valve is to provide:
At its core, a diaphragm control valve works by manipulating the diaphragm’s position within the valve body to regulate flow. Here’s a closer look at the process:
The valve relies on a pressure differential across the diaphragm to operate. When pressure is applied above or below the diaphragm, it moves either upward (to open) or downward (to close) the valve.
The flexible diaphragm enables partial opening positions, allowing for precise control over fluid flow rates. This adjustability is key in applications requiring fine flow regulation.
| Diaphragm | The flexible membrane that opens, throttles, or closes the flow path. It is typically made from materials like rubber, PTFE, or EPDM for durability. |
| Actuator | Controls diaphragm movement, either manually (handwheel) or automatically (pneumatic/electric). |
| Valve Body | The housing contains the flow path and diaphragm seat. Common materials include stainless steel and plastic, depending on the application. |
| Bonnet | The part enclosing the actuator and supporting the diaphragm’s movement. |
| Weir or Seat | A raised area (weir-type) or flat path where the diaphragm seals to stop the flow. |

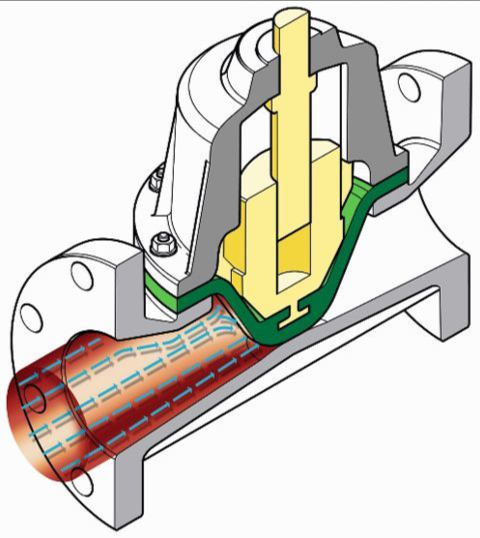

The weir-type diaphragm valve is the most common design. It features a raised surface (the “weir”) where the diaphragm seals to block flow.
As the diaphragm moves up, flow resumes over the weir; when it moves down, the diaphragm presses against the weir to stop flow.
Common Uses: Weir-type valves are widely used in clean, sterile environments like pharmaceuticals, food processing, and water systems.
The straight-through diaphragm valve has no raised weir, providing an unobstructed flow path when the valve is fully open.
The diaphragm moves fully down onto a flat seat, sealing the flow path completely.
Common Uses: These valves excel in slurry handling, wastewater treatment, and applications requiring unrestricted flow.
The lifespan of a diaphragm control valve depends on factors like operating conditions, diaphragm material, and maintenance practices.
On average, a diaphragm lasts 1-3 years under regular use but may last longer with proper care and less demanding applications.
Step 1: Inspect for Leaks: Check the diaphragm for cracks or wear.
Step 2: Replace the Diaphragm: Remove the bonnet, access the diaphragm, and replace it with a new one.
Step 3: Check for Blockages: Clean out any debris or buildup in the valve body.
Step 4: Test the Valve: After reassembly, test the valve to ensure proper function and a tight seal.
Diaphragm control valves are the unsung heroes of fluid systems, offering precise flow control and unmatched reliability in industries that require clean, leak-proof operation.
Whether it’s throttling flow in a sterile pharmaceutical environment or handling slurries in wastewater systems, their versatile design ensures optimal performance.
By understanding their working principles, types, and maintenance needs, you can make the right choice for your application and ensure a longer service life.
With their ability to handle corrosive media, regulate flow efficiently, and provide contamination-free operation, diaphragm control valves remain a critical component in modern industrial systems.
